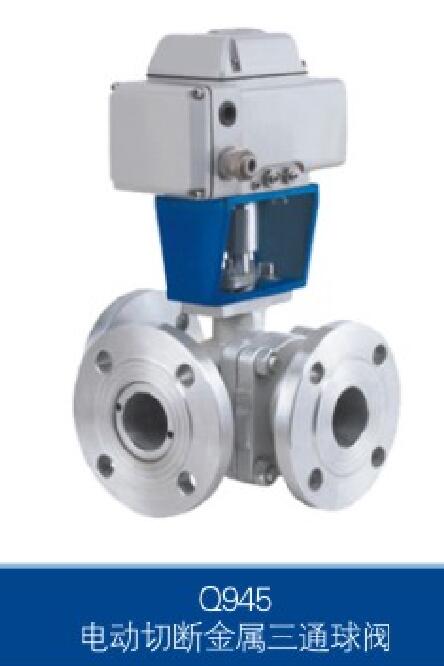

electric actuator metal three way ball valve

It is consist of electric actuators and three way ball valve, they supporting using with solenoid valve, pressure reducing valves (the air dealing parts), accept the 24VDC or 220VAC voltage control signal, medium in the pipeline could be properly control



The three way ball valve core have L type and T type

http://wgpv.cn/en/picfile/20166213914101_s.png



The products is using in the working conditions of medium like water, oil, steam and alkali corrosive medium and solid particles



Application of the industry:

chemical industry

oil refining industry

pesticide industry

Water conservancy industry

Municipal industry



Q945F-16P50EK the model meaning is high following

The T type metal three way ball valve, electric acting actuators ,the seal material is PTFE , the pressure rating is PN1.6MPa , the ball material is CF8 , the valve nominal diameter is DN50 ,the valve two switch function ,work way : electric open



(A)  The valve body technical reference

The design standard: GB/T12237-2007 API16D

The length of the structure: GB/T12221-2005, ASME B16.10

The inspection of standard : GB/T13927-2008 , API598

The connection flange standard : GB/T9113-2000,  HG/T20592, JB/T81, ASME B16.5

The pressure rating : PN10 , PN16 ; ANSI: Class 150 300

The nominal diameter: DN25-200, NPS1”-8”

The temperature : -50-+150



(B)  the parameters of the actuator

the type of the actuator :

the function way : electric open way

               electric shut down way

(C)  The electric actuator parameter

the power specification: 380VAC(50Hz) 220VAC(50Hz) 440V(60Hz)  24VDC  12VDC

the power output torque is:100-15000(N*m)

the working time is 10min

the temperature is -40-+80

the humidity ≤95%

the protection proof is IP55 (IP65  IP67)

the expro-proof is outdoor(No explosion-proof requirements) , flameproof



(D)  The product main performance indicators

The project name

Index parameters

Strength test

1.5XPN

The sealing test

1.1XPN

Low pressure seal  test

≤0.6MPa

The basic error

±2.0%

Back to the poor

≤1.5%

Dead zone

≤0.8%



(E) The three way ball valve main parts material

Parts  name

Material  name

Valve body

WCB  WC6  WC9  CF8  CF8M  ZG1CR5MO

Valve bore

ZG08CR18NI9  CF8  CF8M  ZG1CR5MO

Valve stem

2CR13  1CR13  25Cr2MoV  SS304  SS316

Valve seat

PTFE

packing

PTFE

The packing gland

ZG25  CF8





(E)  The material using temperature

Material name

Temperature range

WCB ZG25 A105

-29+420

WC6 WC9

-29+590

CF8 CF8M

-196+530

CF3 CF3M

-196+420

ZG1CR5MO

-29+600



(H) rated flow values

                             Valve nominal diameter DN

Rated  flow values

25

1

78

32

1.25

110

40

1.5

170

50

2

270

65

2.5

380

80

3

500

100

4

800

125

5

1250

150

6

2000

200

8

3500

250

10

5000

300

12

7200

350

14

8300

400

16

11000





Q945F电动金属三通球阀外形尺寸

Q945F electric acuator metal three way ball valve shape dimension



PN10 and PN16 shape dimension









The packing picture






Ordering instruction

1.  medium temperature

2.  the ball valve body material the seat material

3.  the nominal diameter DN

4.  the nominal pressure PN

5.  the valve turn off pressure difference

6.  the flange connection standard and the sealing surface type

7.  actuator type and function way

8.  the solenoid valve voltage or the positioner input signal

9.  accessory function (proof rating and level of explosion-proof )
