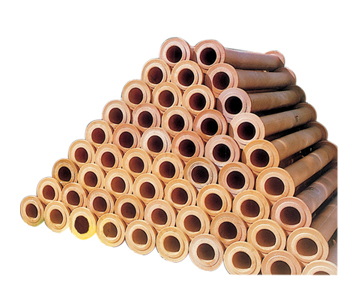

Title:FRPP flange integral moulding straight pipe

Address:Yahe West Road, Kungyang Town, Pinyang County, Wenzhou City,Zhejiang Province ,China
Code:325400
Phone:0577-63883000

Share on facebook Share on twitter Share on email More Sharing Services

一、Product overview

The company developed open FRPP is a new kind of high strength reinforced polypropylene composite material, it is the introduction, digestion, absorption of similar products at home and abroad on the basis of polypropylene as matrix and glass fiber, inorganic filler for strengthening agent and quality improver, pipe products performance are greatly improved, has wear-resisting, corrosion resistance, high strength, leakage resistance, long service life, light weight, the internal and external anti-corrosion, smooth surface, low price, easy installation and maintenance, etc. Can be widely used in petroleum, chemical, chemical fiber, alkali, dye, pesticide, food, medicine, light industry, metallurgy, environmental protection and other fields. Can transport within the temperature range of 120 ℃, all kinds of corrosive medium is stainless steel, inspecting &controlling ideal substitute material.

Compared with other company, my company pipes and pipe fittings is integral moulding reinforced pp pipe, on both sides of the flange and straight pipe moulded out it once, not twice welding, such as product performance than ordinary straight pipe pressure resistance is strong, solve the insufficient pressure resistance in the process of use, easy to leak, etc.

二、 Implement standard and reference standards

Implement standard and reference standards: Q/PBF03-2007 reinforced pp pipe and pipe fittings,

HG/T20539-92 reinforced polypropylene (FRPP) pipe and pipe fittings,

Flange size standards: GB/T9113.1-2000 (or according to the contract)

三、Corrosion resistance of

Because of reinforced pp pipeline based on polypropylene matrix, I in the company by the modified material is given priority to with glass fiber, inorganic filler is complementary, excluding carbonate compounds. So it has excellent corrosion resistance, with the exception of nitric acid and fuming sulfuric acid, chlorosulfonic acid and other strong oxidizing acid and most organic and inorganic acid, such as hydrochloric acid, thin sulfuric acid, hydrofluoric acid and dilute nitric acid, etc.), alkali, salt, also suitable for exposure in the atmosphere.

Used in various concentration - 20 ~ 120 ℃ of organic acid, inorganic acid, alkali and salty solutions on the pipeline transportation medium.

四、Performance indicators

The index name	Unit	Parameter values
The thermal deformation temperature	ºC	≥145ºC
The density of	g/cm³	1.05∽1.15 g/cm³
Flat test	Pressure to the pipe diameter 1/2 no cracks
20ºC Hydraulic test (instantaneous blasting ring to stress)	MPa	≥40MPa
The tensile strength	Mpa	≥35Mpa
Elongation at break	%	≥90%
Cantilever beam impact strength	KJ/m2	≥14KJ/m²
The bending strength	MPa	≥45MPa
Drop hammer impact energy	kg.m	8kg.m
Linear expansion coefficient of	10-5m/m.℃	≤11χ10-5m.℃

五、Integral moulding flange reinforced polypropylene (FRPP) straight pipe size

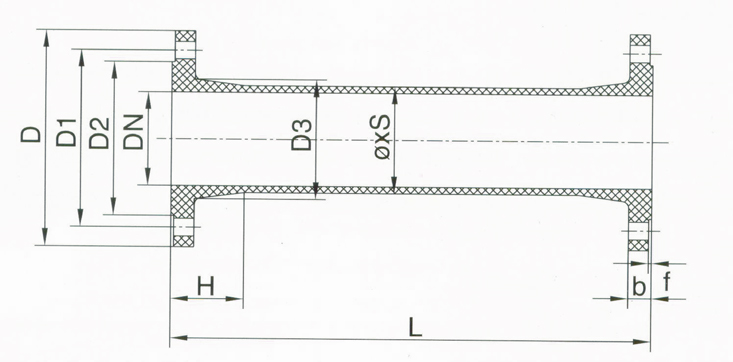

Figure 1. The overall moulding flange straight tube structure

Nominal pressure PN1.0 Mpa units: mm

Nominal diameter DN	Tube diameterWall thickness Ø S and deviation	The main dimension								Length L And the deviation
Nominal diameter DN	Tube diameterWall thickness Ø S and deviation	D	D1	D2	D3	H	b	f	z-d	Length L And the deviation
25	Ø37×6±2	120	85	68	45	55	22	1.5	4-Ø14	100、200、300、500、1000、1500、2000
32	Ø46×7±2	140	100	76	52	60	22	1.5	4-Ø18	100、200、300、500、1000、1500、2000
40	Ø54×7±2	150	110	86	62	60	24	1.5	4-Ø18	100、200、300、500、1000、1500、2000
50	Ø66×8±2	165	125	100	74	65	24	1.5	4-Ø18	100、200、300、500、1000、1500、2000
65	Ø81×8±2	185	145	120	89	65	26	1.5	4-Ø18	100、200、300、500、1000、1500、2000
80	Ø100×10±2	200	160	138	109	70	26	2	8-Ø18	100、200、300、500、1000、1500、2000
100	Ø120×10±2	220	180	158	130	70	28	2	8-Ø18	100、200、300、500、1000、1500、2000
125	Ø150×12±2	750	210	188	160	75	30	2	8-Ø18	100、200、300、500、1000、1500、2000
150	Ø180×15±2	285	240	212	190	80	32	2	8-Ø23	100、200、300、500、1000、1500、2000
200	Ø225×18±2	340	295	268	235	85	34	2	8-Ø23	100、200、300、500、1000、1500、2000
250	Ø280×20±3	395	350	320	292	95	38	2	12-Ø23	100、200、300、500、1000、1500、2000
300	Ø315×20±3	445	400	370	324	105	42	2	12-Ø23	100、200、300、500、1000、1500、（2000）
350	Ø355×22±3	505	460	430	367	110	46	2	16-Ø23	100、200、300、500、1000、（1500、2000）
400	Ø405×22±3	565	515	456	417	110	46	2	16-Ø23	100、200、300、500、1000、（1500、2000）
