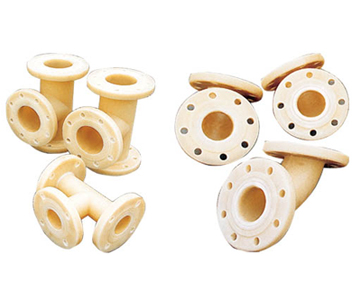

FRPP flange die elbow, tee as a whole

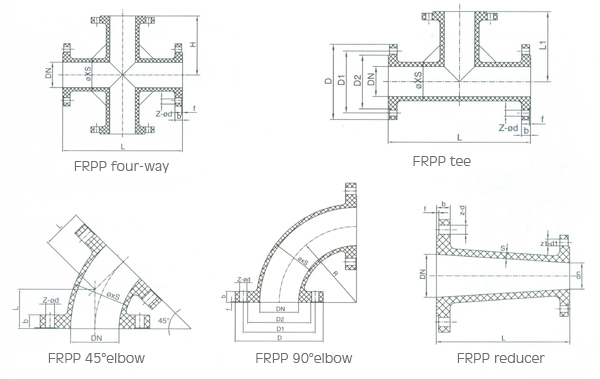

Size table (㎜)


Nominal diameter
DN

The main dimension

Elbow
90º

Elbow
45º

Tee

Four-way

Reducer

D

D1

D2

b

f

Z-d

L

L

L

H

L=2H

L

25

120

85

68

22

1.5

4-Ø14

90

45

180

90

180

124

32

140

100

76

22

1.5

4-Ø18

100

50

200

100

200

124

40

150

110

86

24

1.5

4-Ø18

110

55

200

100

200

124

50

165

125

100

24

1.5

4-Ø18

115

65

236

118

236

136

65

185

145

120

26

1.5

4-Ø18

125

70

264

132

264

150

80

200

160

138

26

2

8-Ø18

135

75

290

145

290

165

100

220

180

158

28

2

8-Ø18

155

80

334

167

334

185

125

750

210

188

30

2

8-Ø18

170

105

388

194

388

210

150

285

240

212

32

2

8-Ø23

190

125

416

208

416

240

200

340

295

268

34

2

8-Ø23

220

140

472

236

472

290

250

395

350

320

38

2

12-Ø23

260

165

582

291

582

350

300

445

400

370

42

2

12-Ø23

300

180

670

335

670

390

350

505

460

430

46

2

16-Ø23

350

200

840

420

840

430
