Title:Steel lining four fluorine elbow, tee, reducer
  • Address:Yahe West Road, Kungyang Town, Pinyang County, Wenzhou City,Zhejiang Province ,China
  • Code:325400
  • Phone:0577-63883000

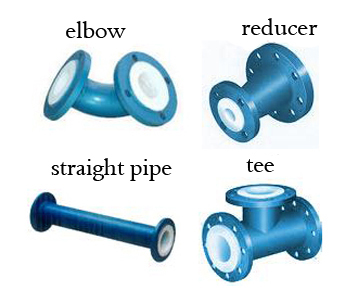

Steel lining four fluorine elbow, tee, reducer

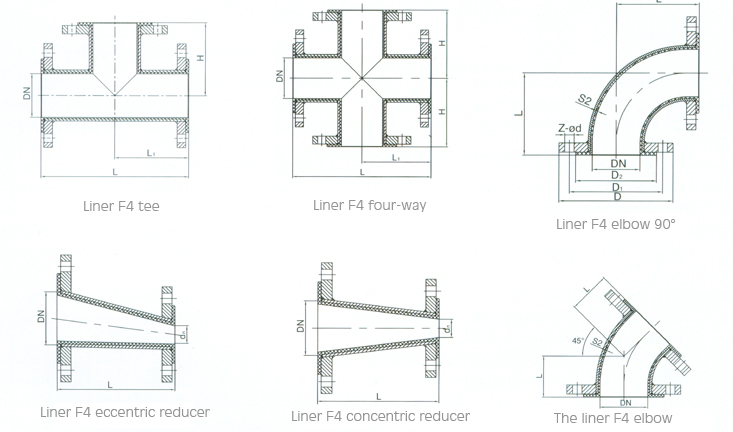

Size table (㎜)                            note: reference to the same specifications straight pipe pipe fittings lining thickness lining thickness
Straight pipe lining thickness

Nominal diameter

DN

The main dimension

Elbow

90º

Elbow

45º

Tee

Four-way

Reducer

D

D1

D2

b

f

Z-d

L

L

L

H

L=2H

L

25

115

85

65

14

2

4-Ø14

90

50

180

90

180

150

32

140

100

76

16

2

4-Ø18

90

50

180

90

180

150

40

150

110

84

16

3

4-Ø18

100

60

200

100

200

150

50

165

125

99

16

3

4-Ø18

125

65

250

125

250

150

65

185

145

118

18

3

4-Ø18

130

75

260

130

260

150

80

200

160

132

18

3

8-Ø18

140

80

280

140

280

150

100

220

180

156

20

3

8-Ø18

160

105

300

150

300

150

125

250

210

184

22

3

8-Ø18

190

110

380

190

380

180

150

285

240

211

22

3

8-Ø22

203

130

440

220

440

180

200

340

295

266

22

3

8-Ø22

230

155

450

225

450

250

250

395

350

319

24

3

12-Ø22

280

188

526

263

526

250

300

445

400

370

26

4

12-Ø22

305

223

530

265

530

250

350

505

460

429

26

4

16-Ø22

350

255

700

350

700

250

400

565

515

480

26

4

16-Ø26

400

290

760

380

760

250

450

615

565

530

26

4

20-Ø26

450

320

840

420

840

300

500

670

620

582

28

4

20-Ø26

500

370

92

46

920

300

600

780

725

682

28

5

20-Ø30

600

400

1000

500

1000

400

三、Ordering information:
When ordering, please specify nominal pressure, nominal diameter, flange standards, the use of medium, the working temperature and lining material, etc.
