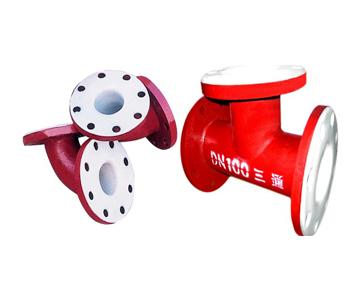

Steel lining plastic elbow, tee, reducer

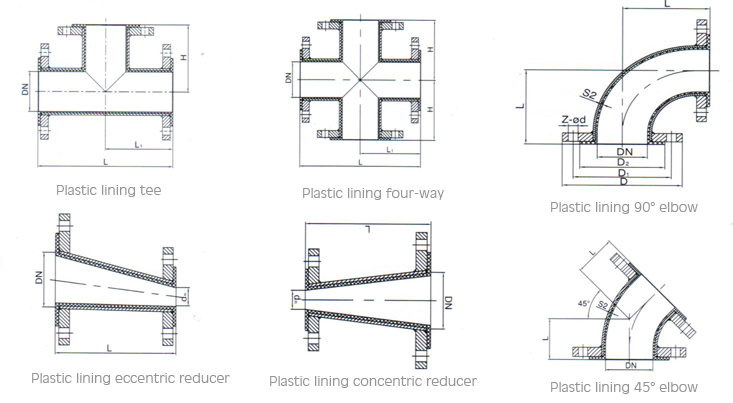

Size table (㎜)

Nominal diameter DN	The main dimension						elbow 90º	elbow 45º	tee		four-way	reducer
Nominal diameter DN	D	D1	D2	b	f	Z－d	L	L	L	H	L=2H	L
25	115	85	65	14	2	4－Ø14	90	50	180	90	180	150
32	140	100	76	16	2	4－Ø18	90	50	180	90	180	150
40	150	110	84	16	3	4－Ø18	100	60	200	100	200	150
50	165	125	99	16	3	4－Ø18	125	65	250	125	250	150
65	185	145	118	18	3	4－Ø18	130	70	260	130	260	150
80	200	160	132	18	3	8－Ø18	140	75	280	140	280	150
100	220	180	156	20	3	8－Ø18	160	80	300	150	300	150
125	250	210	184	22	3	8－Ø18	190	95	380	190	380	180
150	285	240	211	22	3	8－Ø22	203	105	440	220	440	180
200	340	295	266	22	3	8－Ø22	230	140	450	225	450	250
250	395	350	319	24	3	12－Ø22	280	165	526	263	526	250
300	445	400	370	26	4	12－Ø22	305	190	530	265	530	250
350	505	460	429	26	4	16－Ø22	350	190	700	350	700	250
400	565	515	480	26	4	16－Ø26	400	200	760	380	760	250
450	615	565	530	26	4	20－Ø26	450	230	840	420	840	300
500	670	620	582	28	4	20－Ø26	500	280	920	460	920	300
600	780	725	682	28	5	20－Ø30	600	320	1000	500	1000	400
700	895	840	794	30	5	24－Ø30	700	450	1140	570	1140	500
800	1015	950	901	32	5	24－Ø33	800	510	1220	610	1220	600
900	1115	1050	1001	34	5	28－Ø33	900	630	1540	770	1540	700
1000	1230	1160	1112	34	5	28－Ø36	1000	720	1800	900	1800	800
1200	1455	1380	1328	38	5	32－Ø39	1200	850	2240	1120	2240	900

Note: pipe fittings lining thickness with reference to the same specifications straight pipe lining thickness.
