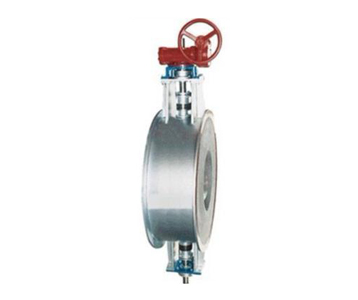

1, design standards: JB/T8692-1998;
2, the structure length standard: GB/T12221-2005;
3, connecting flange standard: GB/T9115-2000;
4, testing standard: JB/T8692-1998;
5, nominal pressure level: PN2.5;
6, nominal diameter range: DN200 ~ 1200;
7, use temperature scope: + 1250 ℃ or less;
8, ambient temperature: - 20 ℃ ~ + 80 ℃;
9, the butterfly plate Angle: 0 ° ~ 60 ° or 0 to 90;
Part name |
material |
The valve body |
20 # composite refractory lining |
Butterfly plate |
High temperature alloy |
The valve stem |
High temperature alloy |
Packing |
Flexible graphite + inconel750 |
