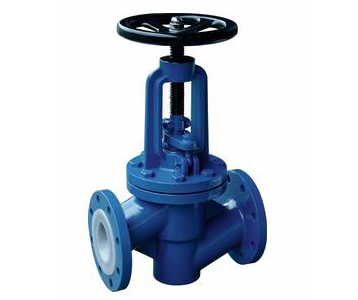

Fluorine-butterfly cut-off valve J41F46

The technical standards

Design and manufacture of

GB/T12233

The length of the structure

GB12221

Flange dimensions

GB/T91131-2000

Drive way

Manual, Pneumatic, Electric

Nominal pressure

1.0、1.6、2.5

Pressure test

GB/T13927-92

The basic model

Manual

J41F46 J45F46 J44F46

Pneumatic

J641F46 J645F46 J644F46

J41F4 J45F4 J44F4

J641F4 J645F4 J644F4

J41PP J45PP J44PP

J641PP J645PP J644PP

J41PO J45PO J44PO

J641PO J645PO J644PO

Electric

J941F46 J945F46 J944F46

J941F4 J945F4 J944F4

J941PP J945PP J944PP

J941PO J945PO J944PO

    Main parts material list:

The serial number

Part name

Gray cast iron

Cast steel

Acid-proof stainless steel casting

Ultra-low carbon stainless acid-resistant steel casting

Z

C

P

R

PL

RL

1

Body/bonnet

HT250

WCB

CF8

CF8M

CF3

CF3M

2

The sphere/stem

25

2Cr13

1Cr18Ni9

1Cr18Ni12Mo2Ti

00Cr18Ni10

00Cr17Ni14Mo2

3

The lining/seat

PCTEF(F3),FEP(F46),PFA(soluble F4),PP,PO

4

The packing gland

WCB

CF8

CF8M

CF3

CF3M

5

Packing

PTFE(F4)

PTFE(F4)

PTFE(F4)

6

Eyelet bolt

35

1Cr17Ni2

1Cr17Ni2

7

Stem nut

ZCuAl10Fe3

ZCuAl10Fe3

ZCuAl10Fe3

8

The bolt

35

1Cr17Ni2

1Cr18Ni9Ti

9

Nut

45

0Cr18Ni9

0Cr18Ni9

10

The handle

WCB

WCB

WCB



J41F46 J44F46 J45F46

    The main connection size:

Nominal diameter

L

L1

L2

D

D1

D2

f

b

n-d

D0

H

H1

W(Kg)

DN
(㎜)

NPS
(inch)

1.0MPa

15

1/2

130

130

90

95

65

45

3

15

4-Ф14

120

165

180

3.9

20

3/4

150

105

95

105

75

55

3

15

4-Ф14

120

195

215

5

25

1

160

160

100

115

85

65

2

16

4-Ф14

120

210

235

6

32

5/4

180

180

105

135

100

78

2

18

4-Ф18

140

215

245

8.8

40

3/2

200

200

115

145

110

85

3

18

4-Ф18

140

260

295

13

50

2

230

230

125

160

125

100

3

20

4-Ф18

160

300

345

15

65

5/2

290

290

145

180

145

120

3

20

4-Ф18

180

320

380

23

80

3

310

310

155

195

160

135

3

22

4-Ф18

240

390

465

38

100

4

350

350

175

215

180

155

3

22

8-Ф18

240

450

540

42

125

5

400

400

200

245

210

185

3

24

8-Ф18

280

460

570

55

150

6

480

480

225

380

240

210

3

24

8-Ф23

320

530

665

77

200

8

600

600

275

335

295

265

3

26

8-Ф23

360

600

790

135

250

10

730

730

325

390

350

320

3

28

12-Ф23

400

720

940

220

1.6MPa

15

1/2

130

130

90

95

65

45

3

15

4-Ф14

120

165

180

3.9

20

3/4

150

105

95

105

75

55

3

15

4-Ф14

120

195

215

5

25

1

160

160

100

115

85

65

2

16

4-Ф14

120

210

235

6

32

5/4

180

180

105

135

100

78

2

18

4-Ф18

140

215

245

8.8

40

3/2

200

200

115

145

110

85

3

18

4-Ф18

140

260

295

14

50

2

230

230

125

160

125

100

3

20

4-Ф18

160

300

345

18

65

5/2

290

290

145

180

145

120

3

20

4-Ф18

180

320

380

26

80

3

310

310

155

195

160

135

3

22

8-Ф18

240

390

465

40

100

4

350

350

175

215

180

155

3

24

8-Ф18

240

450

540

50

125

5

400

400

200

245

210

185

3

26

8-Ф18

280

460

570

65

150

6

480

480

225

280

240

210

3

28

8-Ф23

320

530

665

85

200

8

600

600

275

335

295

265

3

30

12-Ф23

360

600

790

150

250

10

730

730

325

405

355

320

3

32

12-Ф26

400

720

940

245

2.5MPa

15

1/2

130

130

90

95

65

45

3

15

4-Ф14

120

165

180

3.9

20

3/4

150

105

95

105

75

55

3

15

4-Ф14

120

195

215

5

25

1

160

160

100

115

85

65

2

16

4-Ф14

140

210

235

6

32

5/4

180

180

105

135

100

78

2

18

4-Ф18

160

215

245

8.8

40

3/2

200

200

115

145

110

85

3

18

4-Ф18

180

260

295

15

50

2

230

230

125

160

125

100

3

20

4-Ф18

180

300

345

20

65

5/2

290

290

145

180

145

120

3

22

8-Ф18

240

320

380

28

80

3

310

310

155

195

160

135

3

22

8-Ф18

280

390

465

42

100

4

350

350

175

230

190

160

3

24

8-Ф23

320

450

540

57

125

5

400

400

200

270

220

188

3

28

8-Ф26

320

460

570

71

150

6

480

480

225

300

250

218

3

30

8-Ф26

360

530

665

90

200

8

600

600

275

360

295

265

3

30

12-Ф26

360

600

790

150

250

10

730

730

325

425

355

320

3

32

12-Ф30

400

720

940

245
