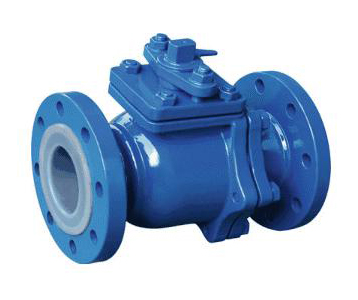

Lining fluorine ball valveQ41F46

The technical standards

Design and manufacture of

GB/T12237

The length of the structure

HG/T3704-2003 GB12221

Flange dimensions

GB/T91131-2000

Drive way

Manual, Turbine, Pneumatic, Electric

Nominal pressure

1.0、1.6

Pressure test

GB/T13927-92

The basic model

Manual

Q41F46

Pneumatic

Q641F46

Q41F4

Q641F4

Q41PO

Q641PO

Q41PP

Q641PP

The turbine

Q341F46

Electric

Q941F46

Q341F4

Q941F46

Q341PO

Q941PO

Q341PP

Q941PP

    Main parts material list:

The serial number

Part name

Gray cast iron

Cast steel

Stainless steel

Ultra-low carbon stainless steel

Z

C

P

R

PL

RL

1

Body and bonnet

HT250

WCB

CF8

CF8M

CF3

CF3M

2

Ball core

WCB

WCB

CF8

CF8M

CF3

CF3M

3

The lining layer/seat

FEP(F46) PCTFE(F3)PFA(Los ptfe)

4

The packing gland

HT250

WCB

CF8

CF8M

CF3

CF3M

5

Packing

PTFE(F4) Teflon  PTFE(F4) Teflon

6

Bolt

35

35

1Cr17Ni2

1Cr17Ni2

1Cr18Ni9

1Cr18Ni9

7

Nut

45

45

0Cr18Ni9

0Cr18Ni9

0Cr18Ni9

0Cr18Ni9

8

The handle

WCC

WCC

WCC

WCC

WCC

WCC



    The main connection size:

Nominal diameter

L

D

D1

D2

f

b

Z-φd

W(Kg)

DN(mm)

NPS(inch)

PN1.0MPa

15

1/2

140

95

65

45

2

14

4-φ14

3

20

3/4

140

105

75

55

2

16

4-φ14

3.9

25

1

150

115

85

65

2

16

4-φ14

4.5

32

5/4

165

135

100

78

2

18

4-φ18

6.5

40

3/2

180

145

110

85

3

18

4-φ18

8

50

2

200

160

125

100

3

20

4-φ18

11

65

5/2

220

180

145

120

3

20

4-φ18

15.5

80

3

250

195

160

135

3

22

4-φ18

19

100

4

280

215

180

155

3

22

8-φ18

26

125

5

320

245

210

185

3

24

8-φ18

44

150

6

360

280

240

210

3

24

8-φ23

70

200

8

400

335

295

265

3

26

8-φ23

110

250

10

450

390

350

320

3

28

12-φ23

220

PN1.6MPa

15

1/2

140

95

65

45

2

14

4-φ14

3

20

3/4

140

105

75

55

2

16

4-φ14

3.9

25

1

150

115

85

65

2

16

4-φ14

4.5

32

5/4

165

135

100

78

2

18

4-φ18

6.5

40

3/2

180

145

110

85

3

18

4-φ18

8

50

2

200

160

125

100

3

20

4-φ18

11

65

5/2

220

180

145

120

3

20

4-φ18

15.5

80

3

250

195

160

135

3

22

8-φ18

19

100

4

280

215

180

155

3

24

8-φ18

26

125

5

320

245

210

185

3

26

8-φ18

44

150

6

360

280

240

210

3

28

8-φ23

70

200

8

400

335

295

265

3

30

12-φ23

110

250

10

450

390

350

320

3

28

12-φ26

220

PN2.5MPa

15

1/2

140

95

65

45

2

16

4-φ14

3

20

3/4

140

105

75

55

2

16

4-φ14

3.9

25

1

150

115

85

65

2

16

4-φ14

4.5

32

5/4

165

135

100

78

2

18

4-φ18

6.5

40

3/2

165

145

110

85

3

18

4-φ18

8

50

2

203

160

125

100

3

20

4-φ18

11

65

5/2

222

180

145

120

3

22

4-φ18

15.5

80

3

241

195

160

135

3

22

8-φ23

19

100

4

305

230

190

160

3

24

8-φ25

33

125

5

356

270

220

188

3

28

8-φ25

58

150

6

394

300

250

218

3

30

8-φ25

93

200

8

400

360

310

278

3

34

12-φ30

155

250

10

450

425

370

332

3

36

12-φ26

245
